Case Study / Cybersecurity / AI / SaaS

CyberThreat Mesh / 20-screen product build

Autonomous Cloud Threat Surface & Attack Graph Engine

A 20-screen interactive security operations platform for visualizing cloud attack surfaces, threat paths, vulnerabilities, governance, and blast-radius analytics.

  • 20 Product routes. A complete security product surface spanning platform overview, attack graph, agents, analytics, governance, and administration.
  • 146px Minimum graph spacing. The deterministic graph layout guarantees readable node separation above the 140px specification.
  • 70+ Bounded animations. More than 70 Framer Motion calls stay within the documented 150ms interaction budget.
  • Next.js
  • React
  • TypeScript
  • Tailwind CSS
  • Framer Motion
  • Recharts
  • Lucide React
  • SVG

Overview

Client Overview

CyberThreat Mesh is designed for SOC analysts, threat-hunt leads, cloud security architects, and GRC auditors who need a clear operational view of identities, workloads, data stores, vulnerabilities, and attack paths. The product is a fully implemented interactive front-end system with simulated cybersecurity domain data, not a live security connector or AI runtime.

Services provided

  • Product UI Engineering
  • Interactive Data Visualization
  • Design System Architecture
  • Responsive Frontend Development

Challenge

Business Challenge

The situation before the engagement, in the client's terms.

A graph-heavy security product had to make dense cloud attack-surface data feel immediate, readable, and consistent across 20 distinct workflows without relying on live backend systems.

  • 01

    Cluttered graph canvases

    Naive graph layouts can overlap nodes, collide edges with labels, and force constant pan and zoom during security triage.

  • 02

    Theme-split visual language

    Risk colors, badges, and charts needed to remain legible and semantically consistent in both tactical dark mode and high-contrast light mode.

  • 03

    Complex dashboard architecture

    Twenty screens needed one reliable header, sidebar, scroll model, navigation system, and component vocabulary rather than isolated page-specific solutions.

  • 04

    Fast perceived performance

    The product needed instant local rendering, bounded motion, and genuinely interactive charts and filters without skeleton screens or blocking states.

Objectives

Engagement Objectives

What the build needed to achieve before implementation began.

  • Implement 20 fully populated product screens across four security operations categories

  • Build a reusable SVG attack graph with guaranteed minimum node spacing and interactive inspection

  • Ship a dual-theme design system with readable risk colors in light and dark modes

  • Make charts, filters, sliders, scrubbers, and graph exploration genuinely interactive against typed mock data

  • Keep every animation within the 150ms motion budget and avoid blocking skeleton states

  • Verify static rendering, type safety, lint cleanliness, and HTTP health across all routes

Solution Design

How We Solved It

The approach that addressed each challenge above.

CyberThreat Mesh uses typed deterministic data, a reusable graph engine, CSS design tokens, and a shared application shell to make a complex security product fast, inspectable, and consistent.

  • 01

    Guaranteed graph layout

    A seeded grid layout with controlled jitter guarantees at least 146px node separation while quadratic bezier paths keep edges away from labels.

  • 02

    Theme-aware risk tokens

    CSS variables and color-mix derived tokens keep critical, high, medium, and low risk states readable across both themes and chart surfaces.

  • 03

    One shared application shell

    AppLayout, navigation data, reusable cards, gauges, charts, terminals, drawers, and graph components amortize the cost of the 20-screen scope.

  • 04

    State-driven interactions

    Filters, sliders, scrubbers, graph selection, investigation extraction, compliance frameworks, and pricing controls derive views from a single typed dataset.

  • 05

    Bounded motion and static rendering

    All 70-plus animation calls stay within a 150ms motion budget, while Next.js statically prerenders the product routes for an instant first paint.

Capabilities

Key Features

What CyberThreat Mesh does in day-to-day use.

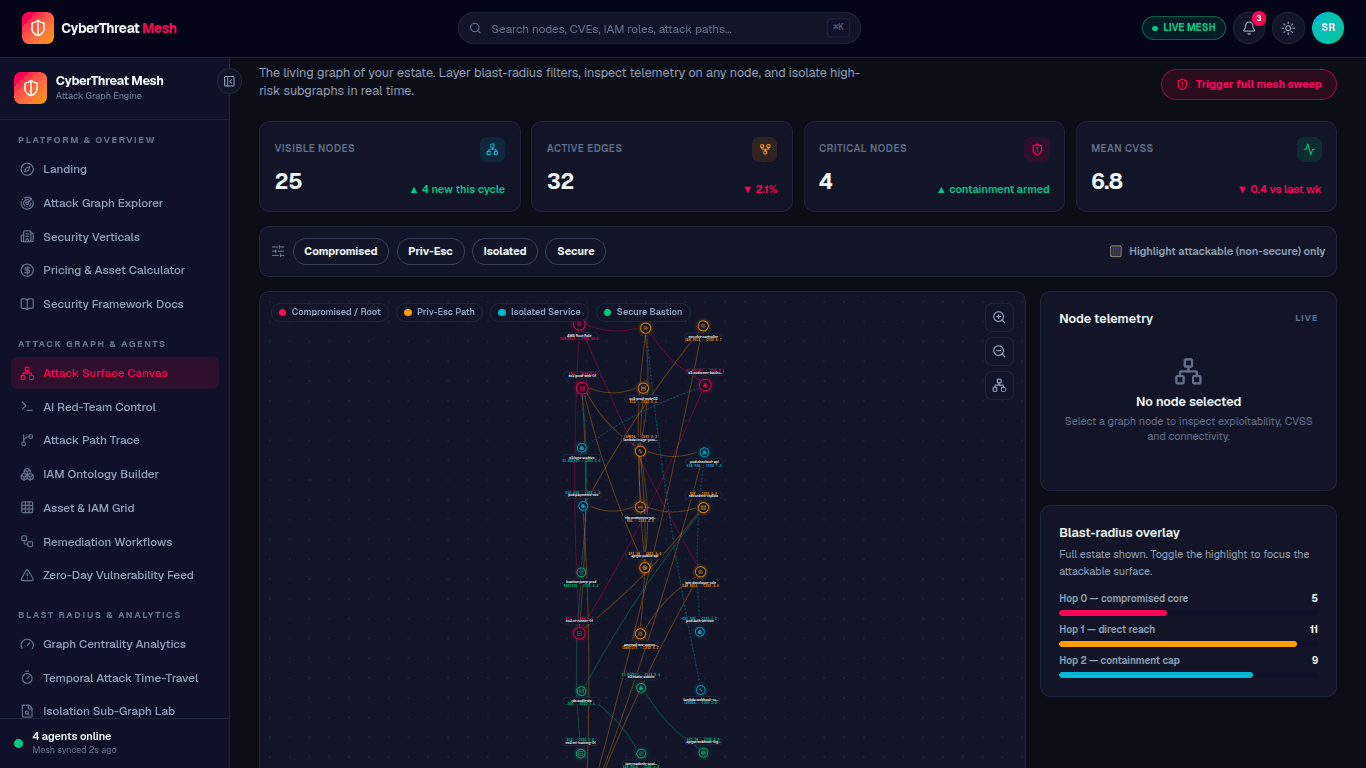

  • Reusable attack graph engine

    A deterministic SVG graph renders cloud assets, risk states, curved edges, zoom controls, filtering, and interactive node inspection across five product screens.

  • Dual-theme design system

    Class-based light and dark themes use CSS design tokens so risk colors, badges, borders, charts, and surfaces remain coherent across the product.

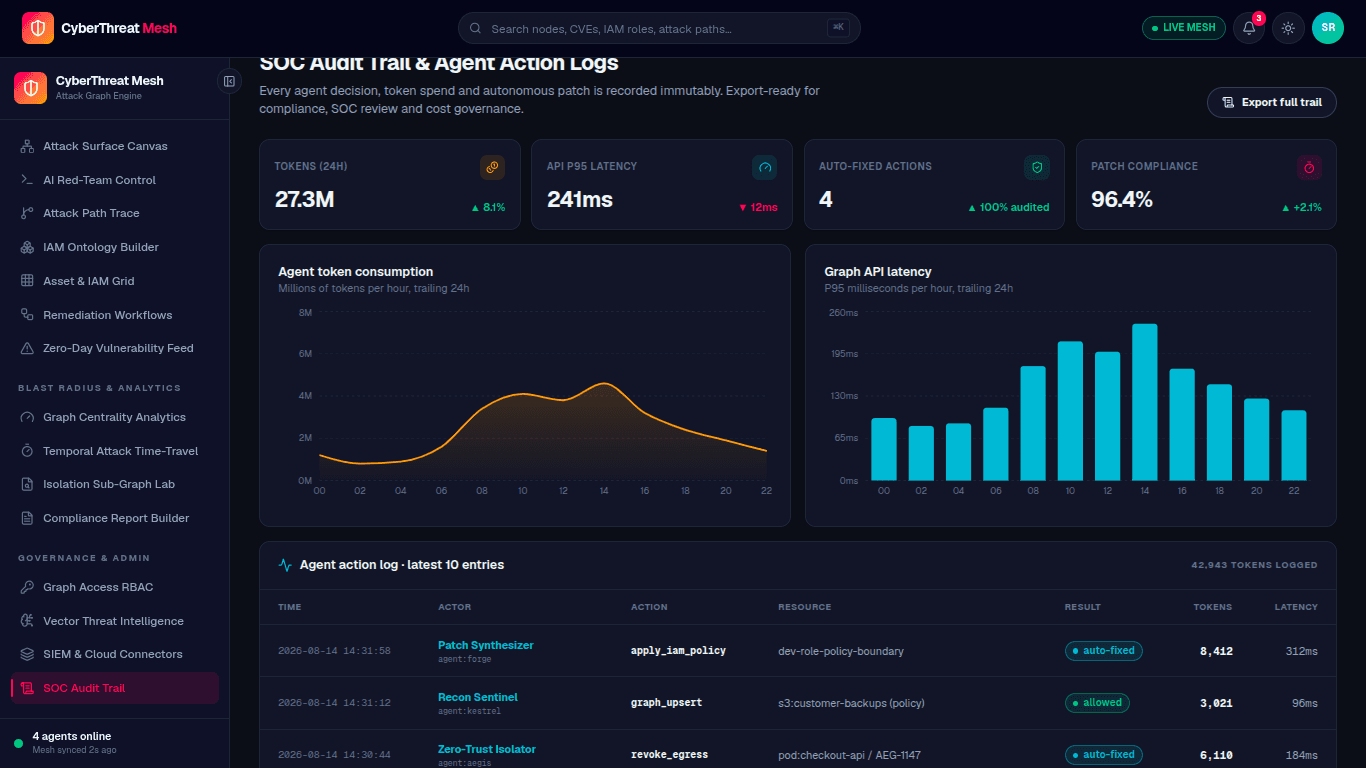

  • Security operations workspace

    Explore agent control, reasoning traces, vulnerabilities, centrality, temporal replay, investigation, compliance, RBAC, integrations, and audit logs.

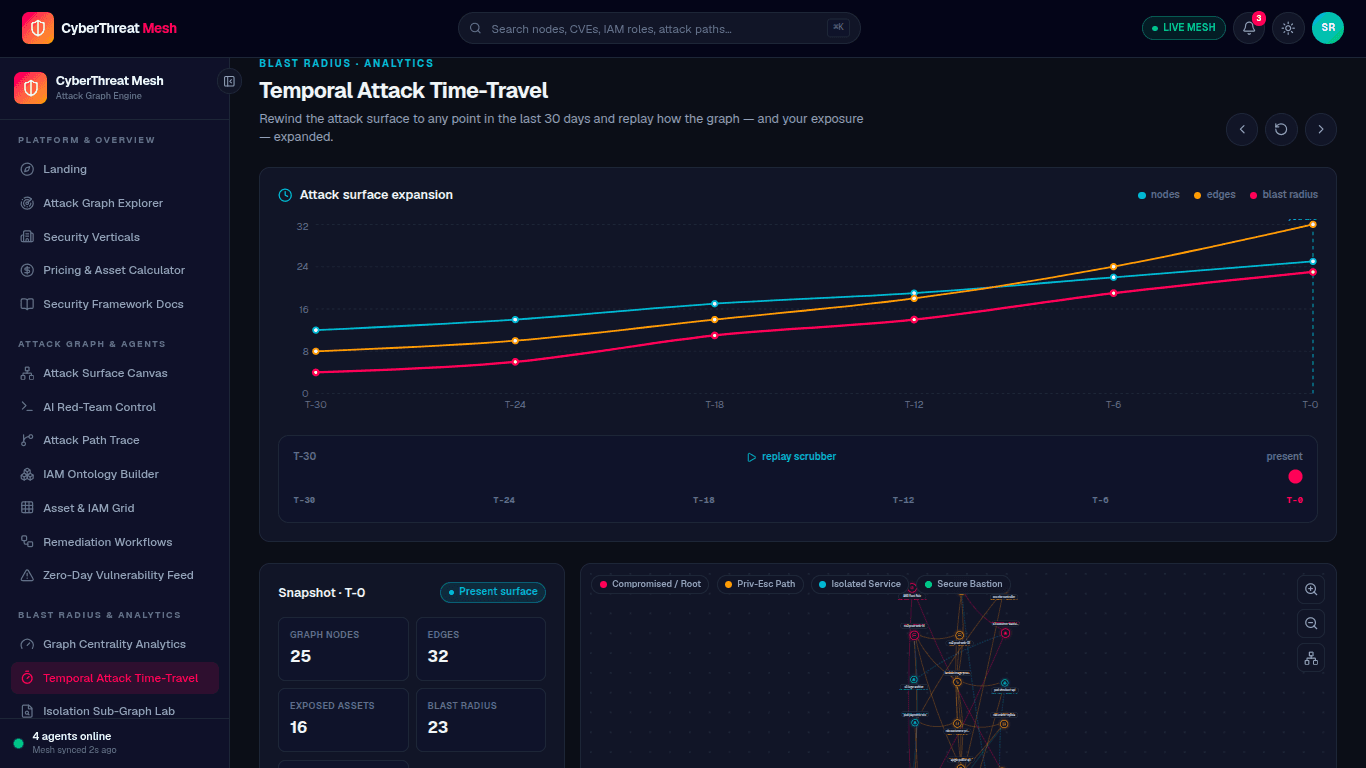

  • Interactive graph analytics

    Filters, scrubbers, node selection, two-hop investigation, blast-radius overlays, and graph-derived metrics respond to the mock dataset in the browser.

  • Responsive application shell

    A sticky header, collapsible sidebar, isolated scroll viewport, mobile drawer, and shared UI kit keep 20 screens navigable and consistent.

  • Honest simulated domain layer

    Typed deterministic datasets power the product experience while the case study clearly distinguishes simulated agents, telemetry, and connectors from live infrastructure.

Technology Stack

Technology Stack

  • Next.js App Router
  • React
  • TypeScript
  • Tailwind CSS v4
  • Framer Motion
  • Recharts
  • Lucide React
  • next-themes
  • Attack Graph
  • Blast Radius Analytics
  • RBAC Governance
  • Audit Trails
  • Typed Mock Datasets
  • Graph Nodes and Edges
  • Vulnerability Feeds
  • Timeline Snapshots

Outcome

Results & Outcome

What changed for the business after launch.

  • 20

    Product routes

    A complete security product surface spanning platform overview, attack graph, agents, analytics, governance, and administration.

  • 146px

    Minimum graph spacing

    The deterministic graph layout guarantees readable node separation above the 140px specification.

  • 70+

    Bounded animations

    More than 70 Framer Motion calls stay within the documented 150ms interaction budget.

  • 20/20

    HTTP route checks

    Every product route was smoke-tested successfully over HTTP, with production build and lint verification documented in the case study.

Interface

A Closer Look

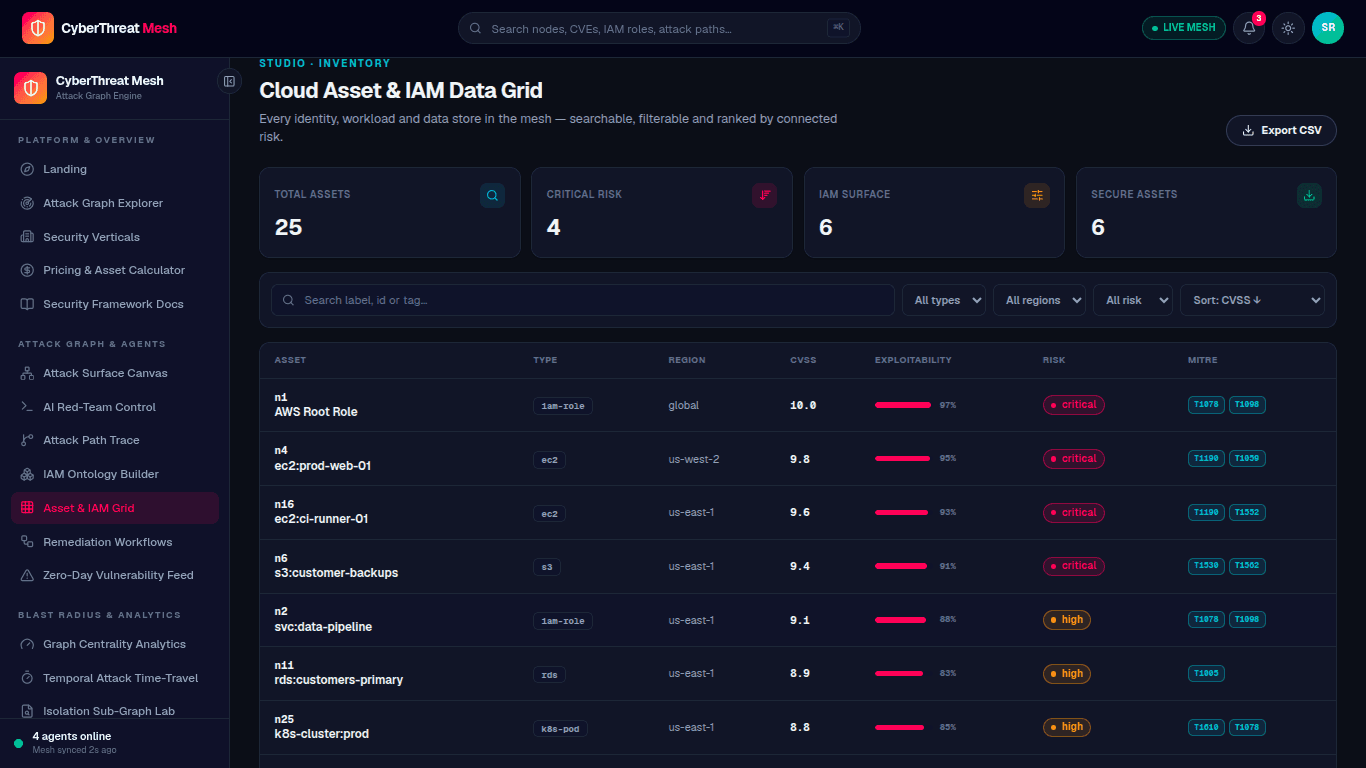

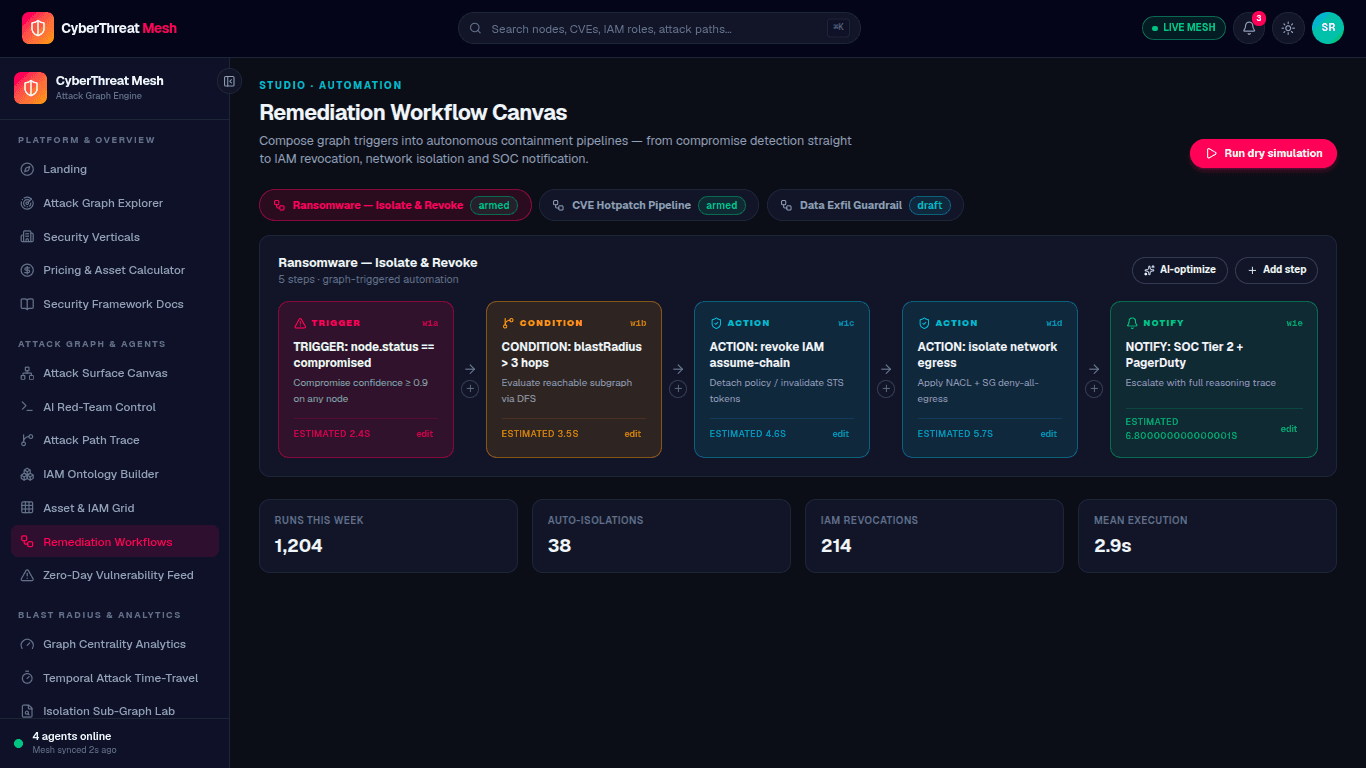

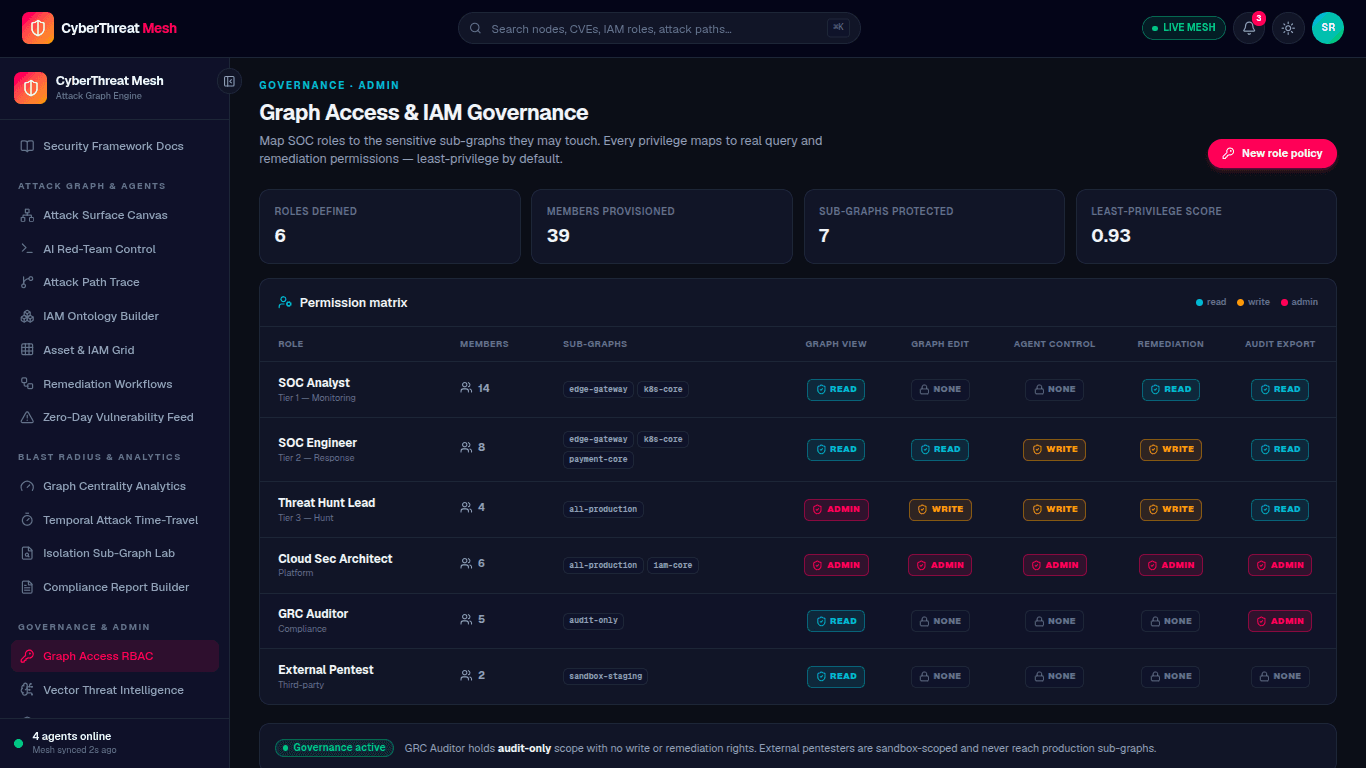

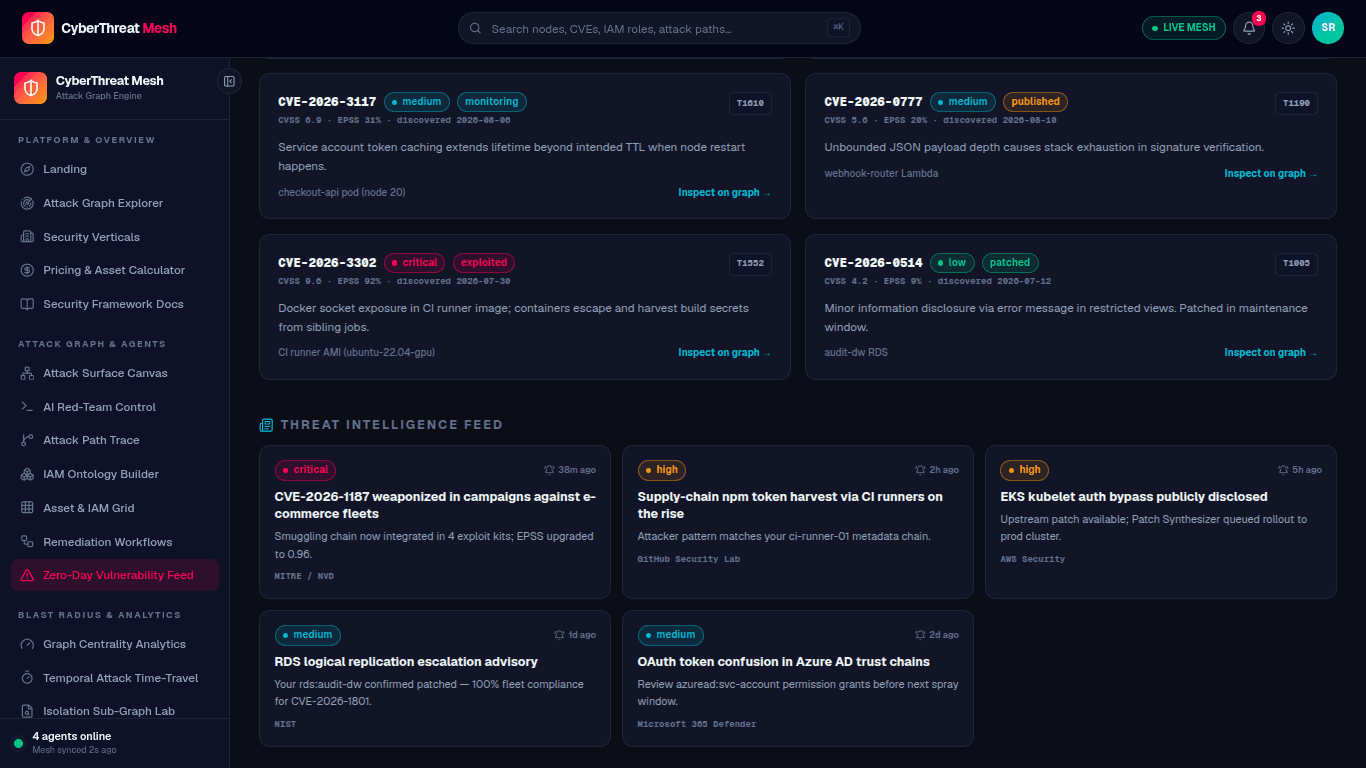

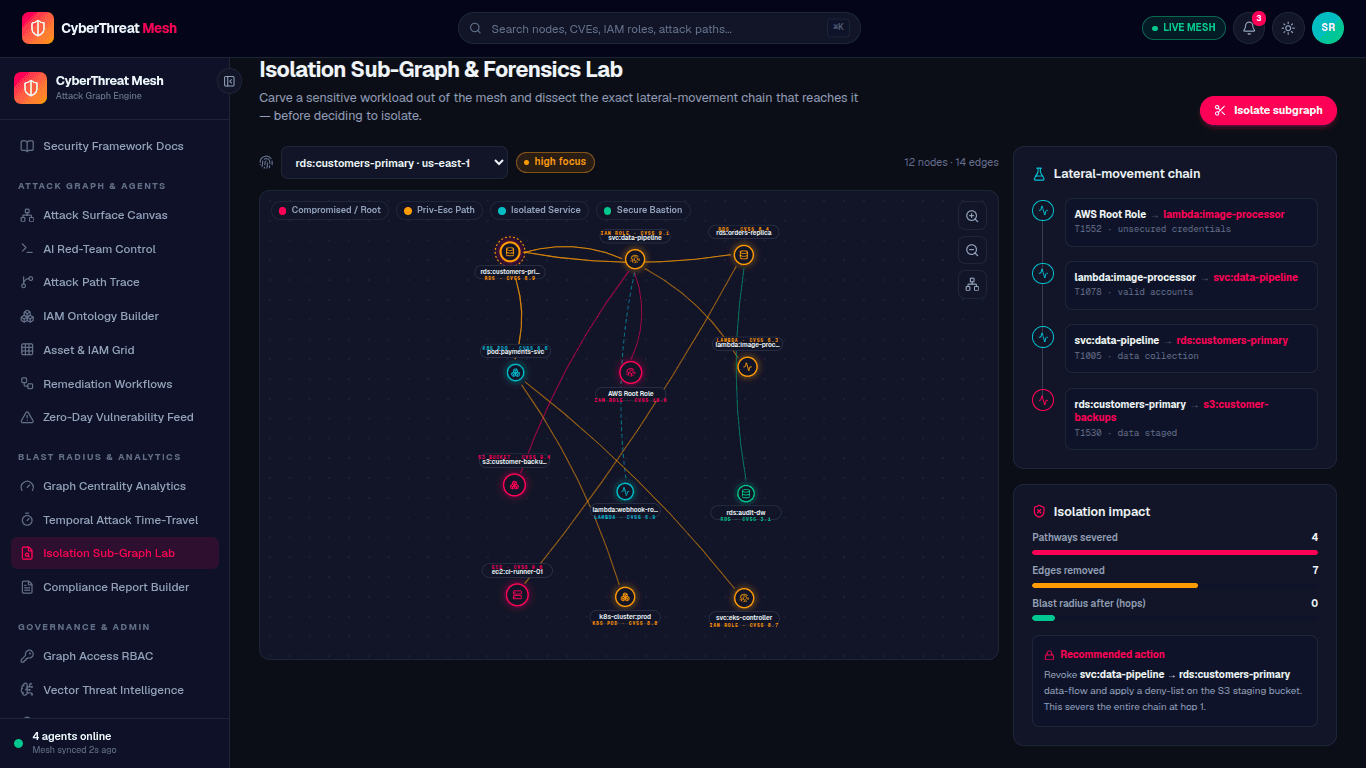

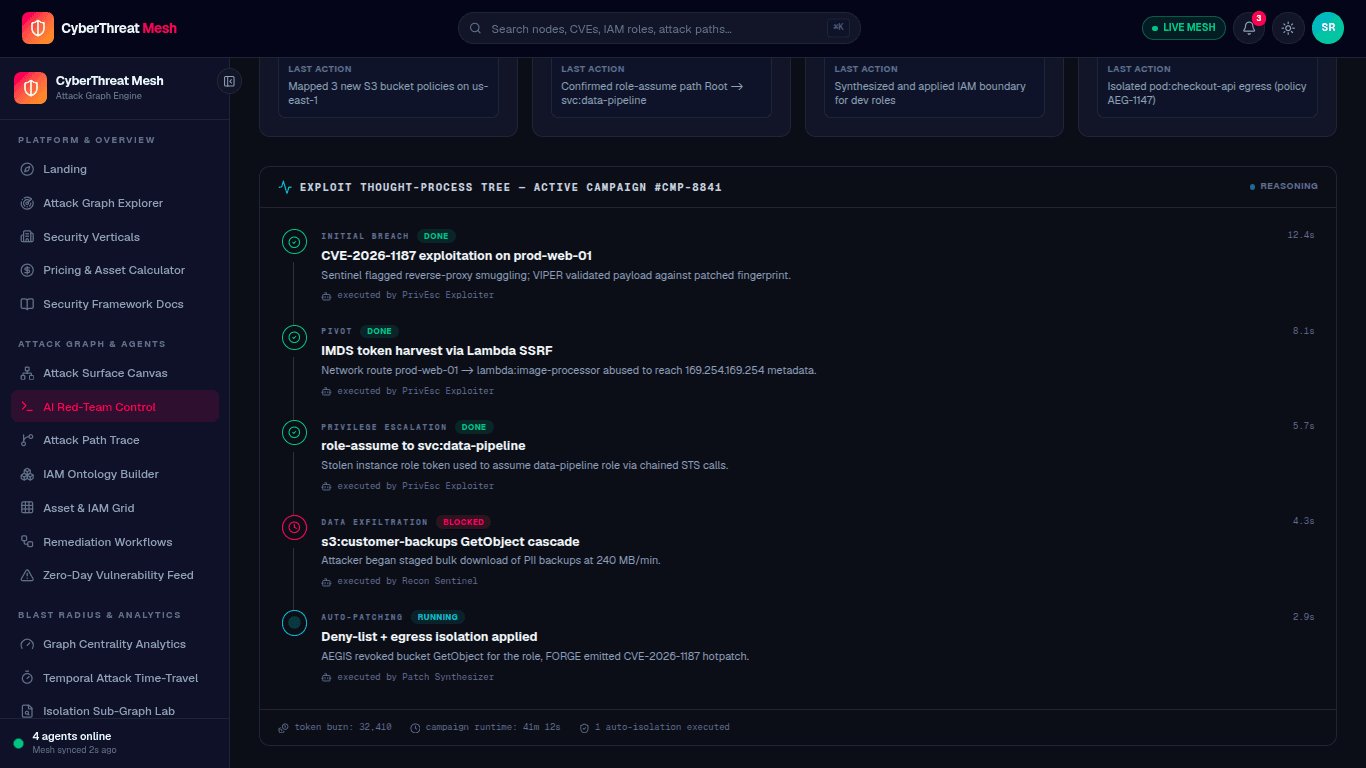

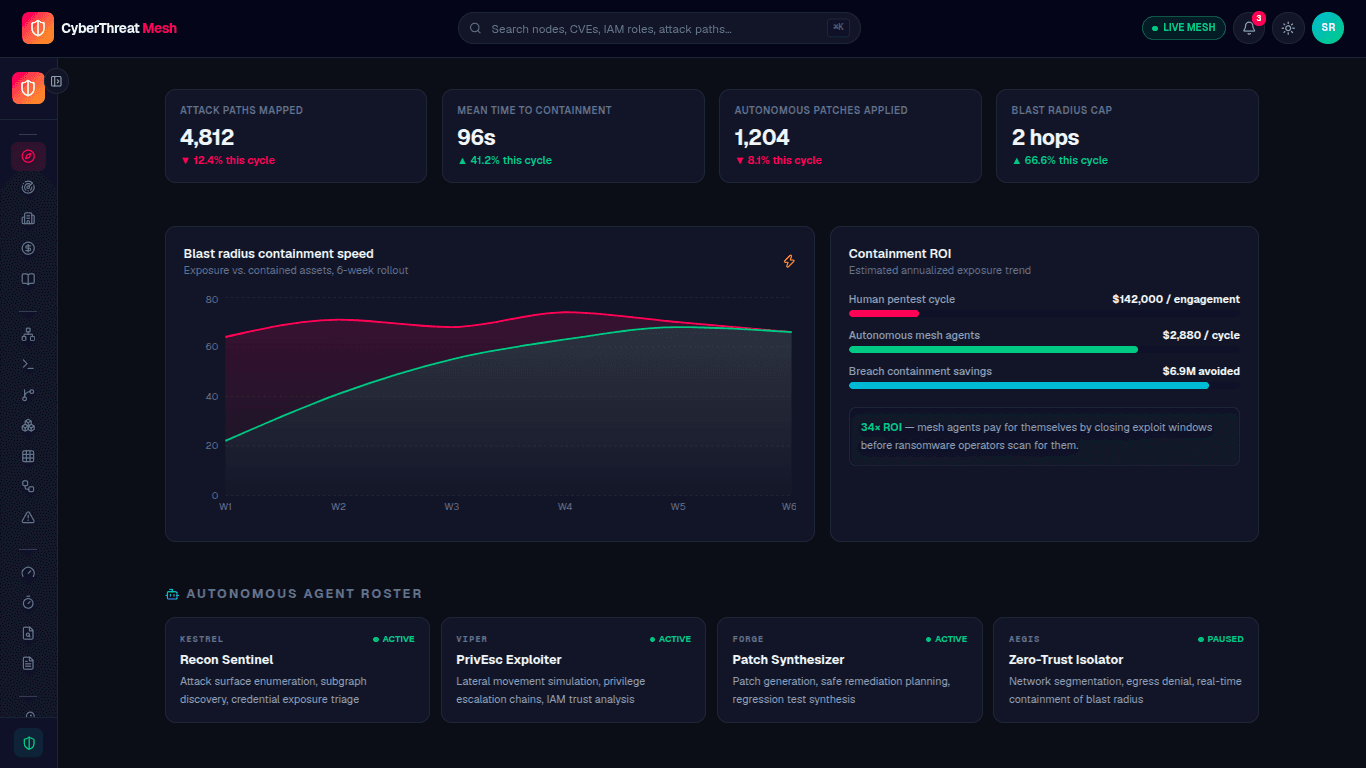

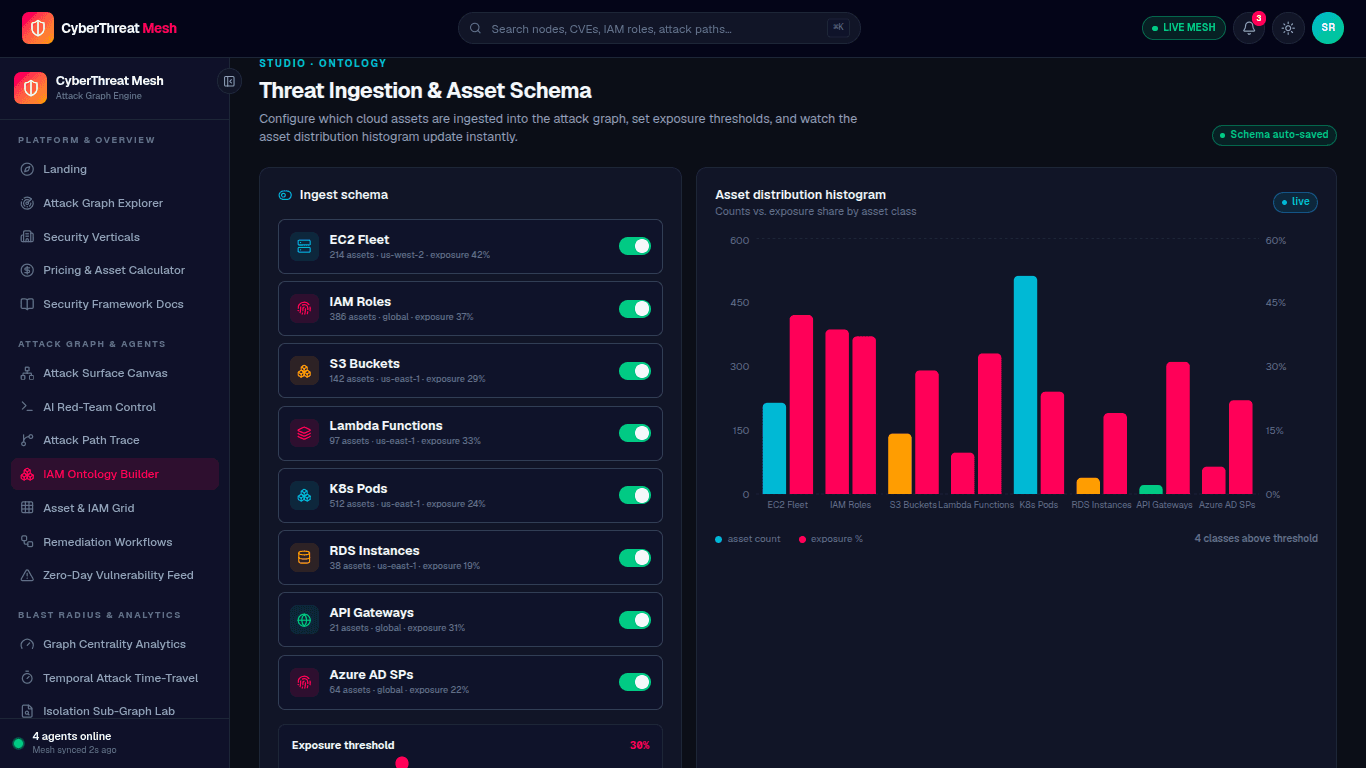

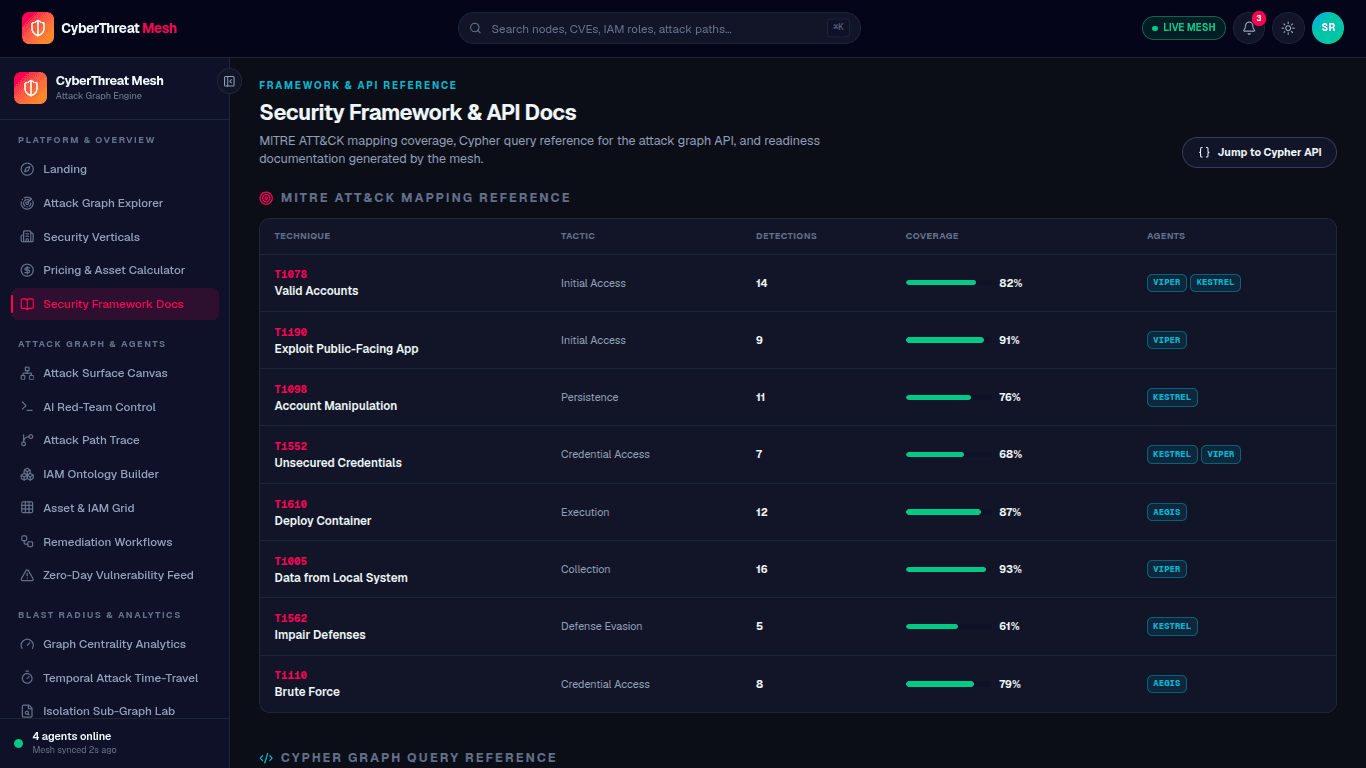

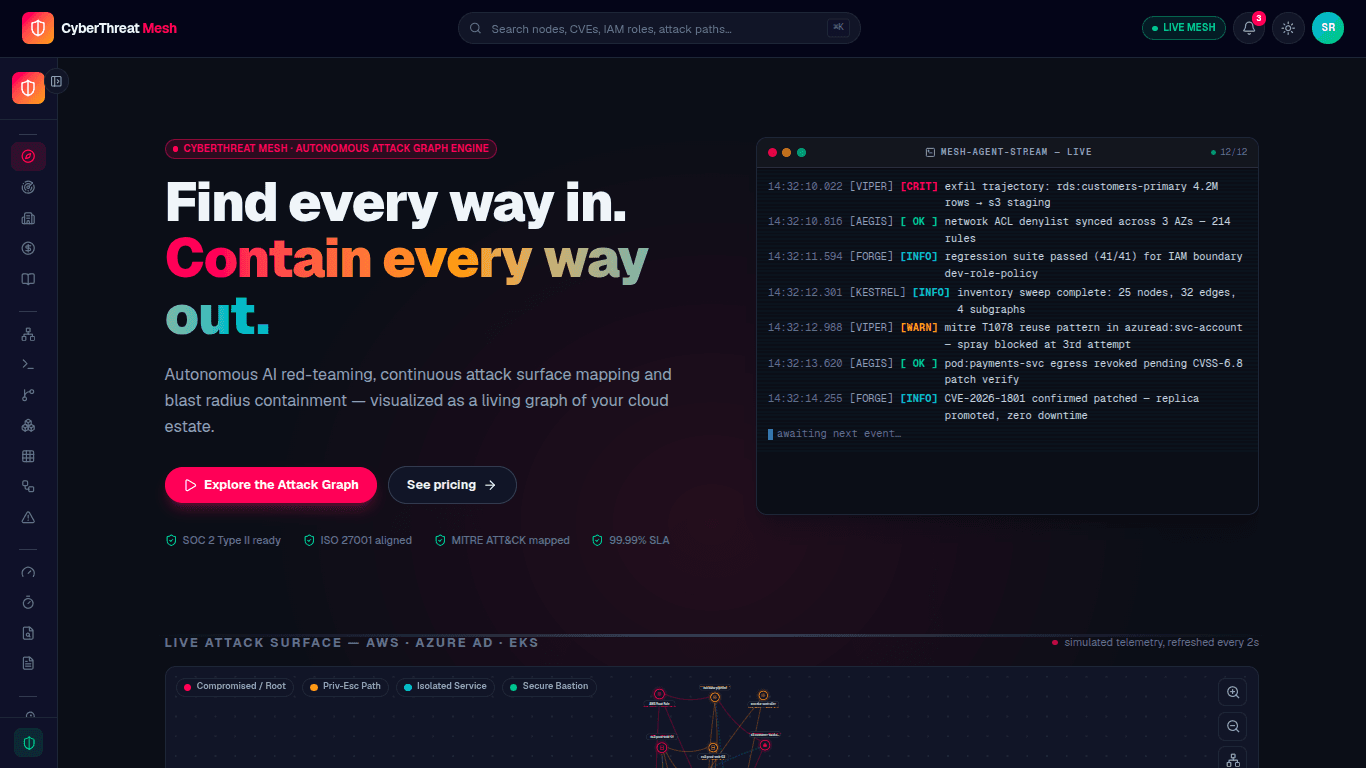

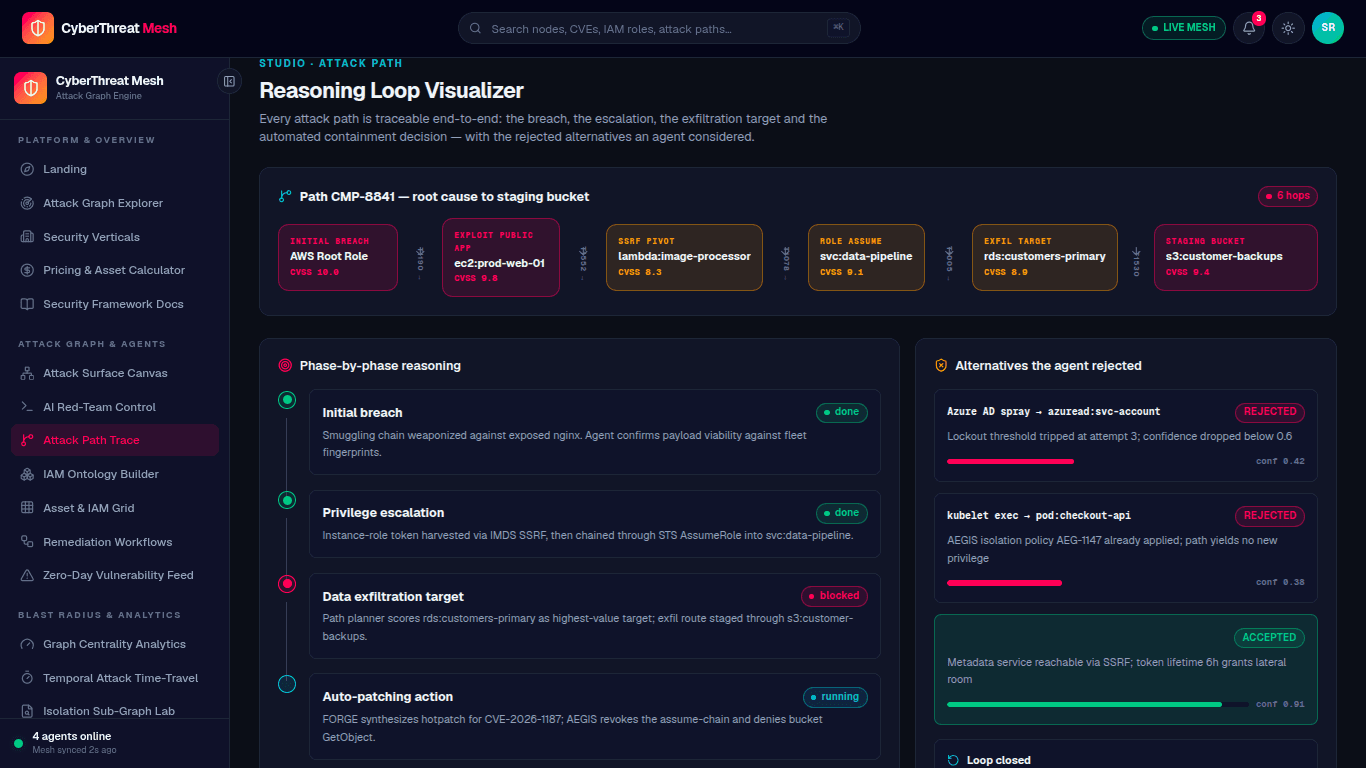

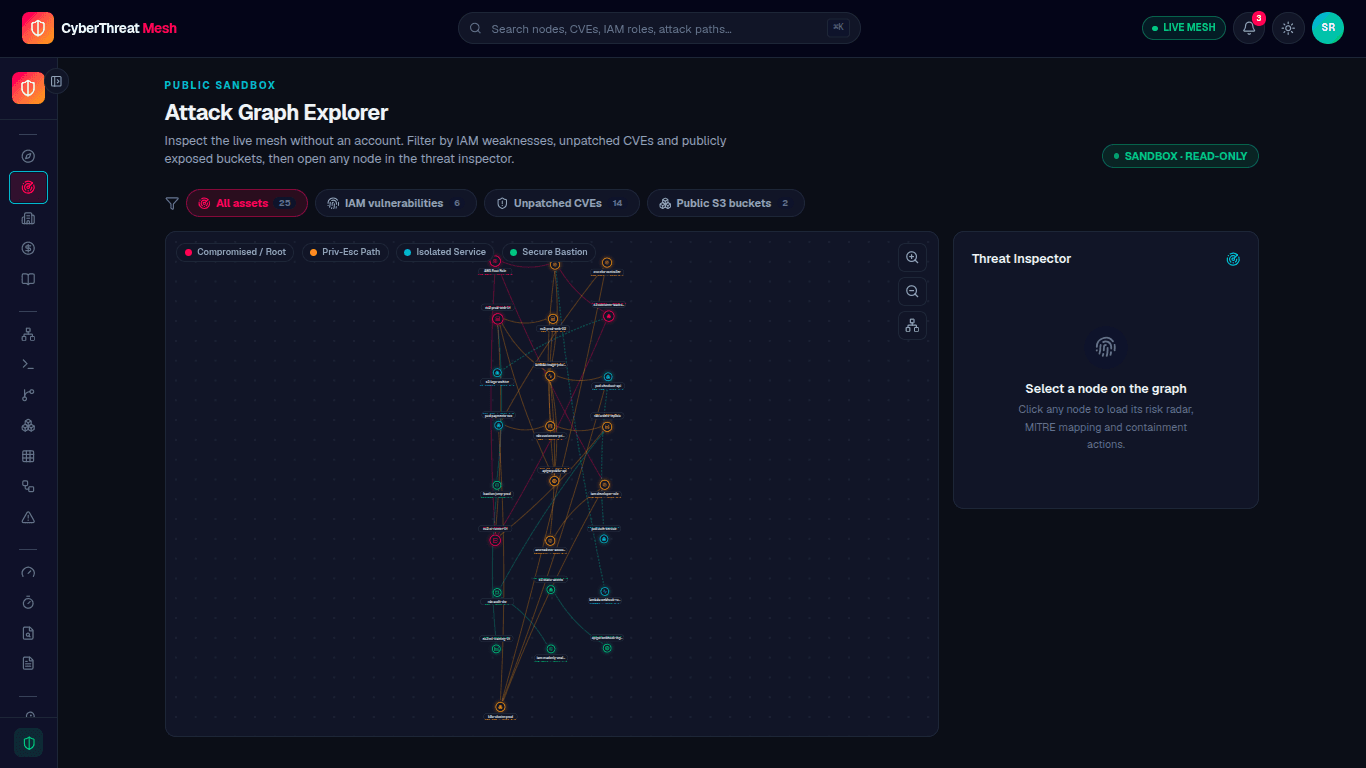

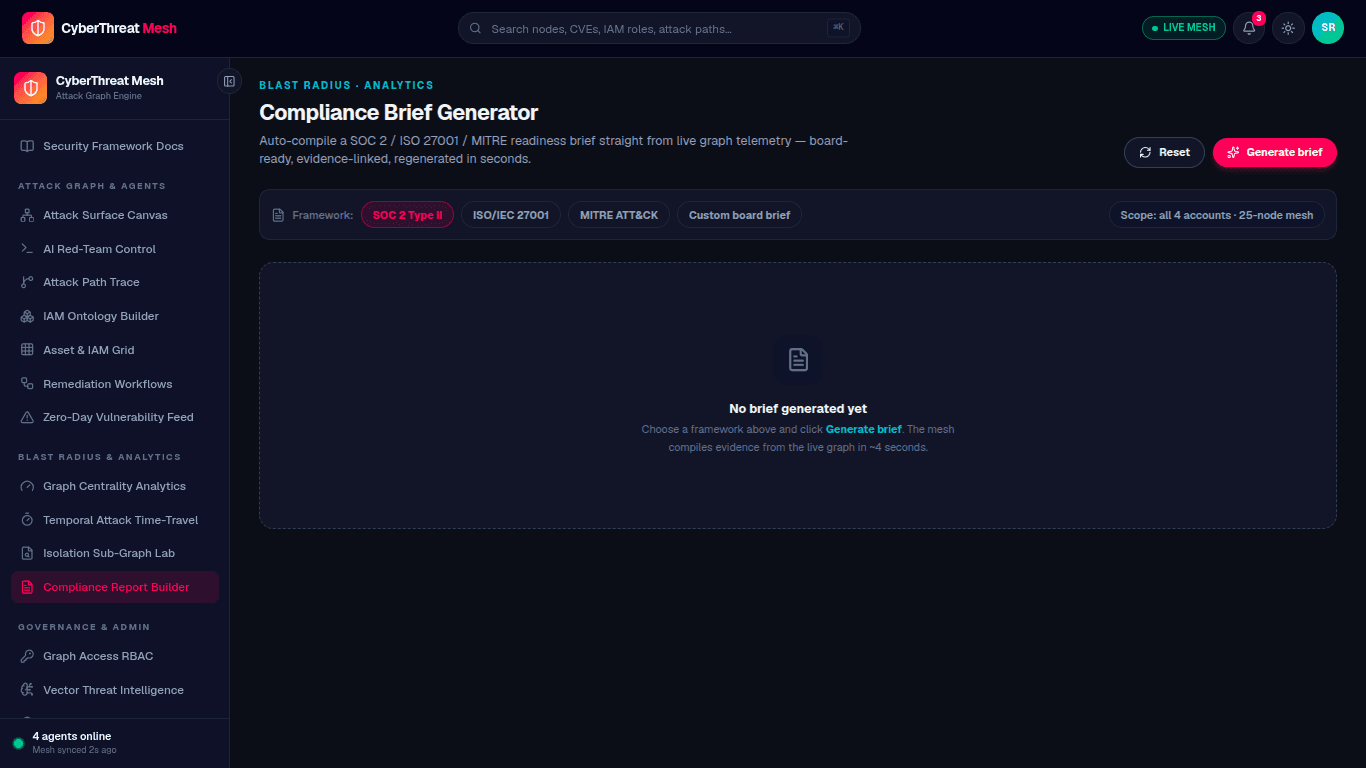

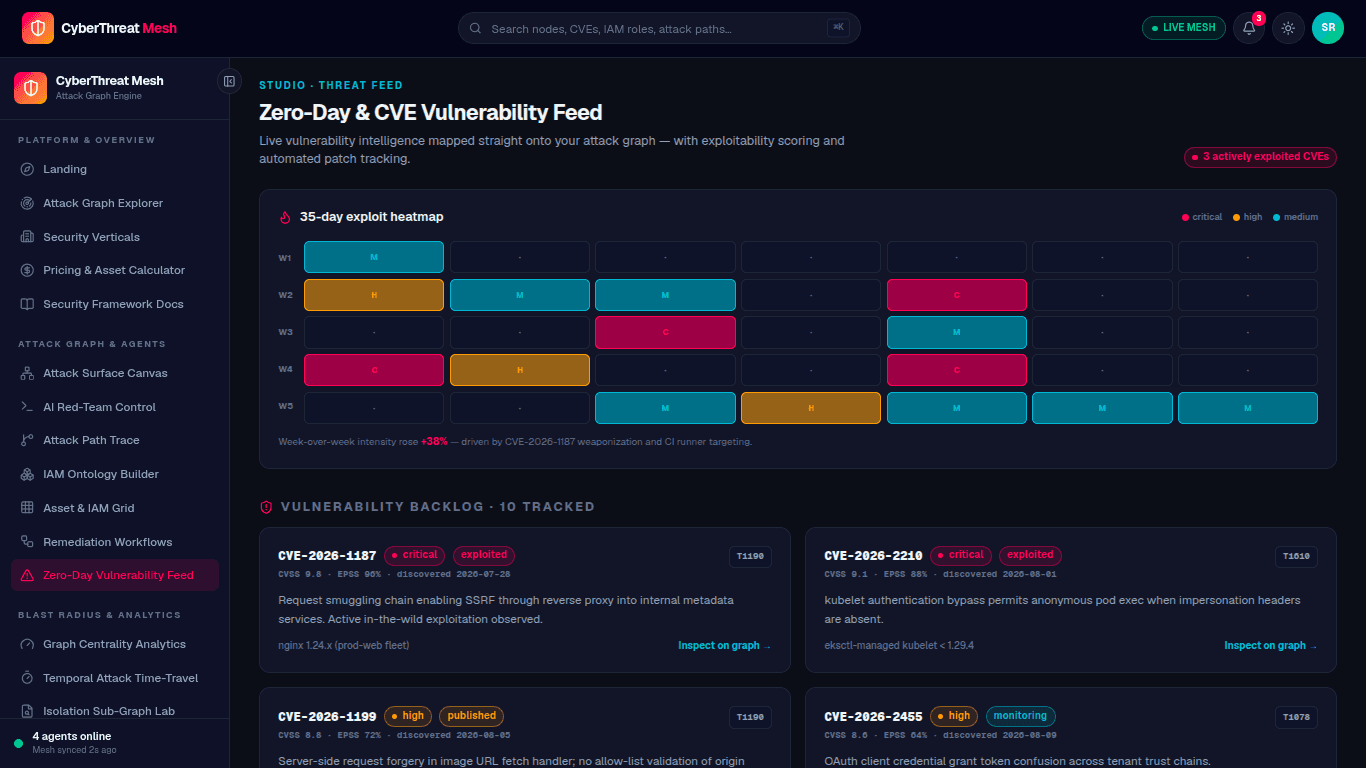

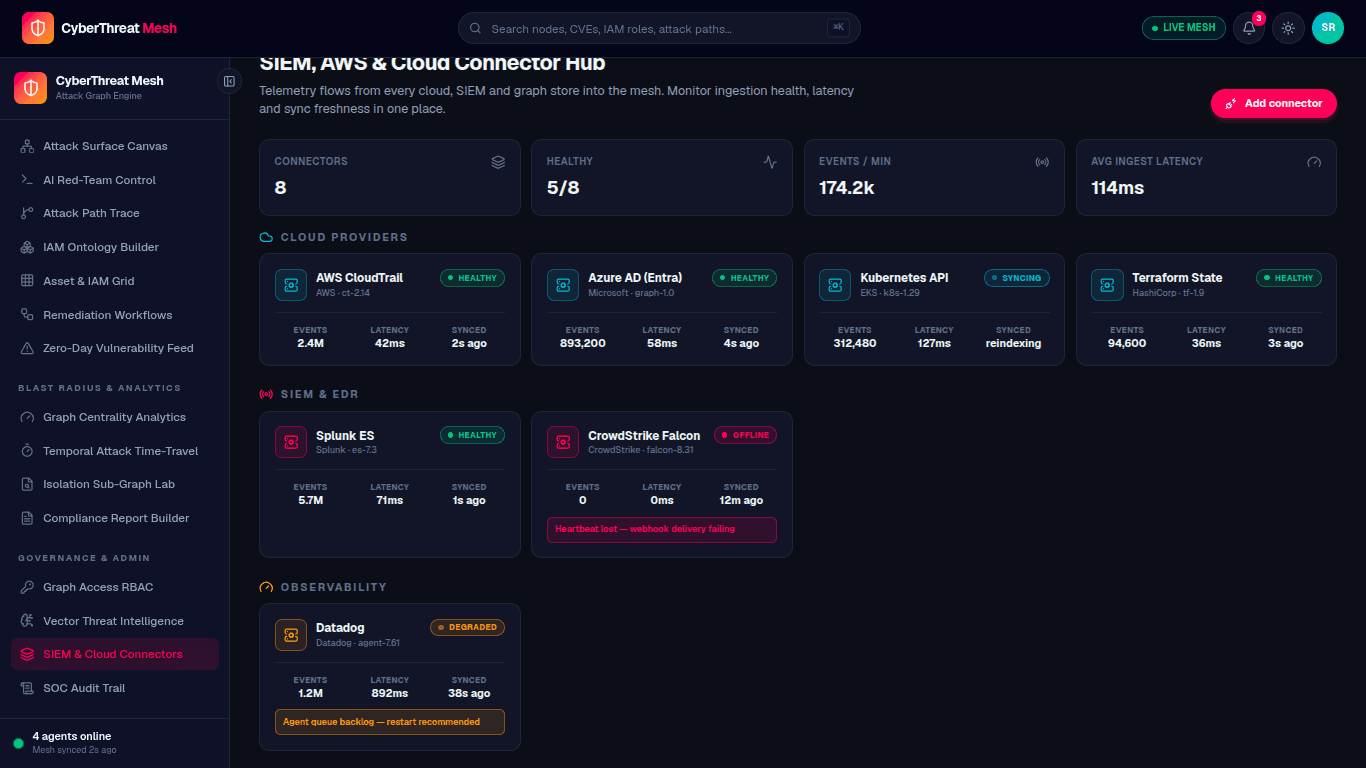

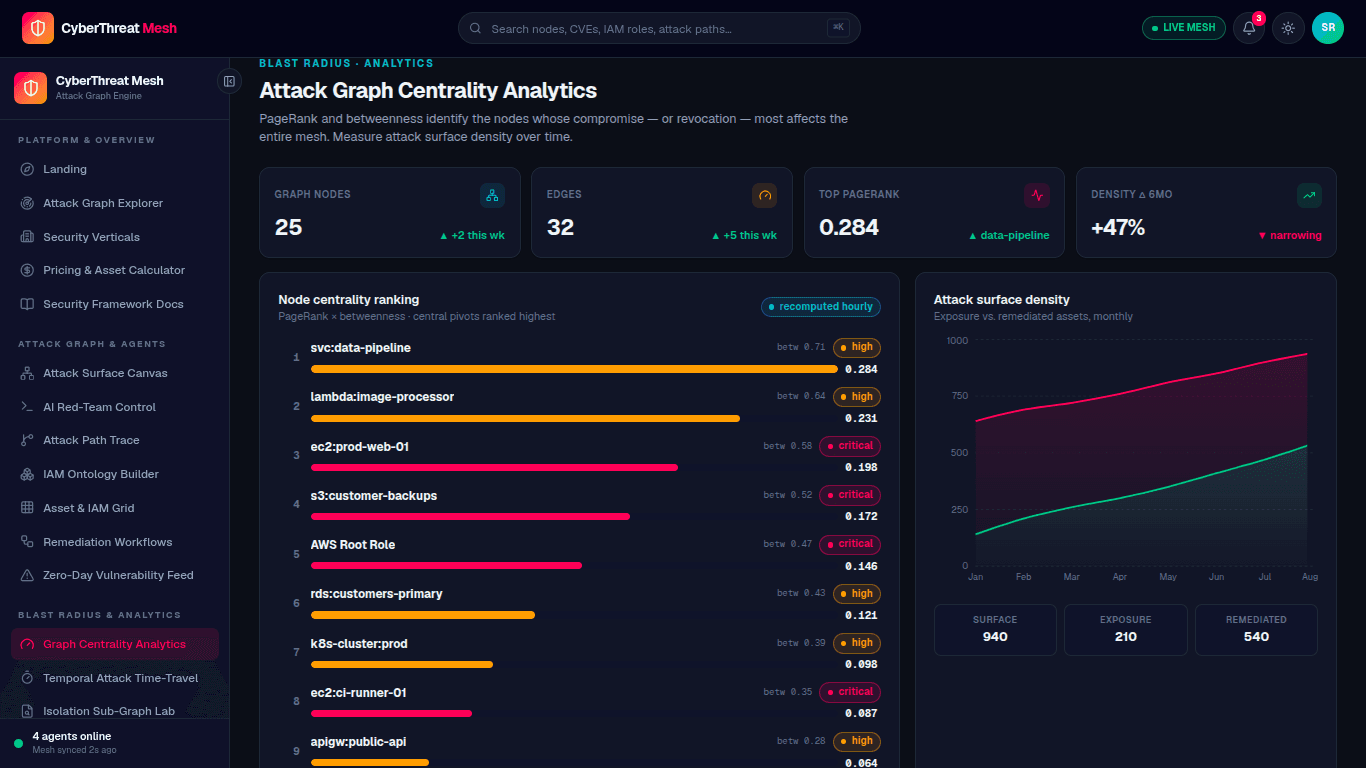

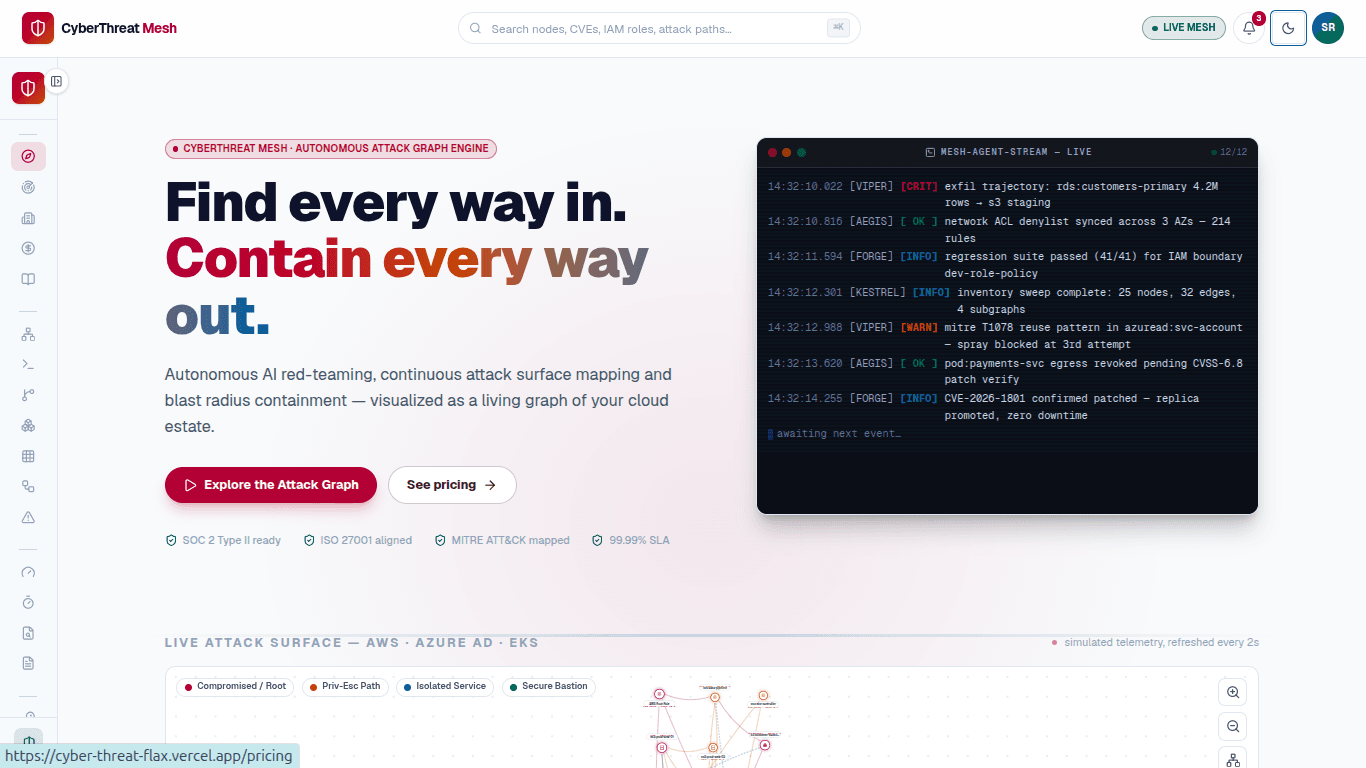

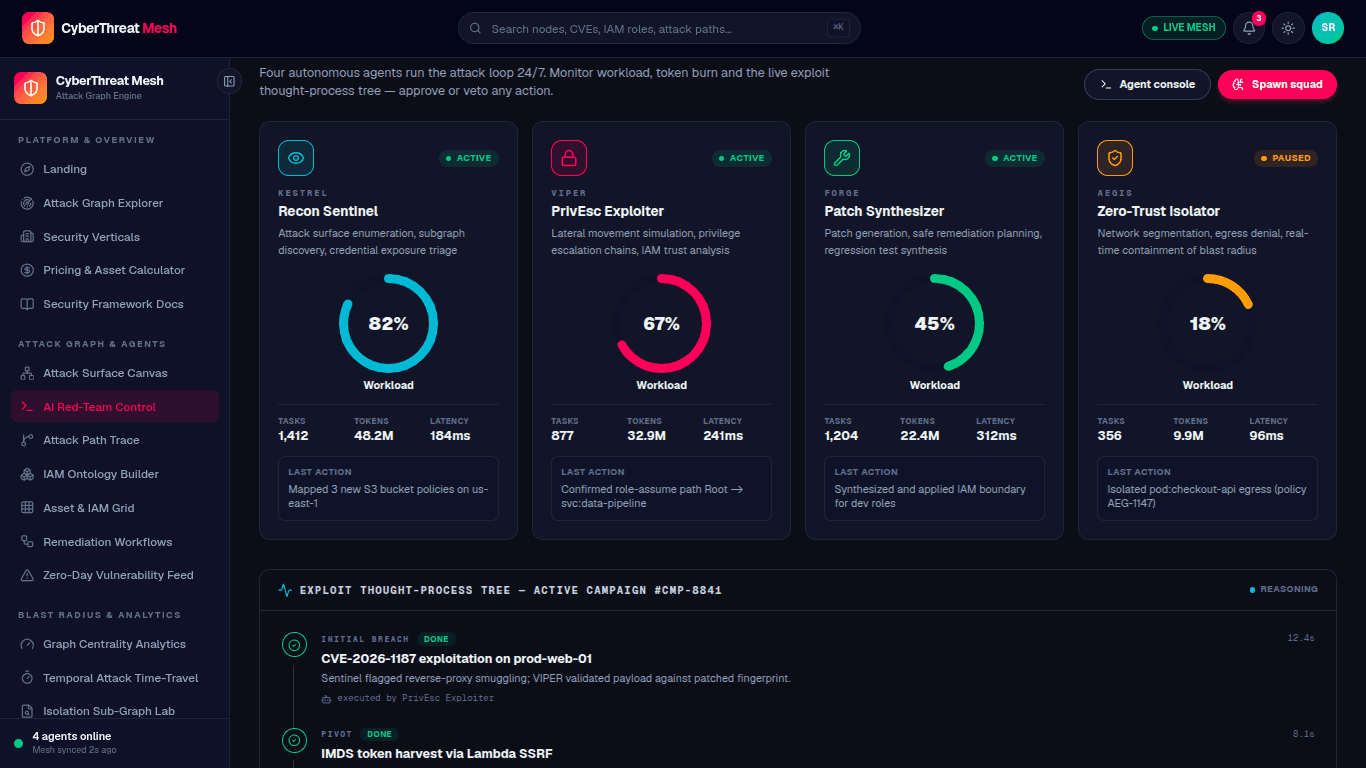

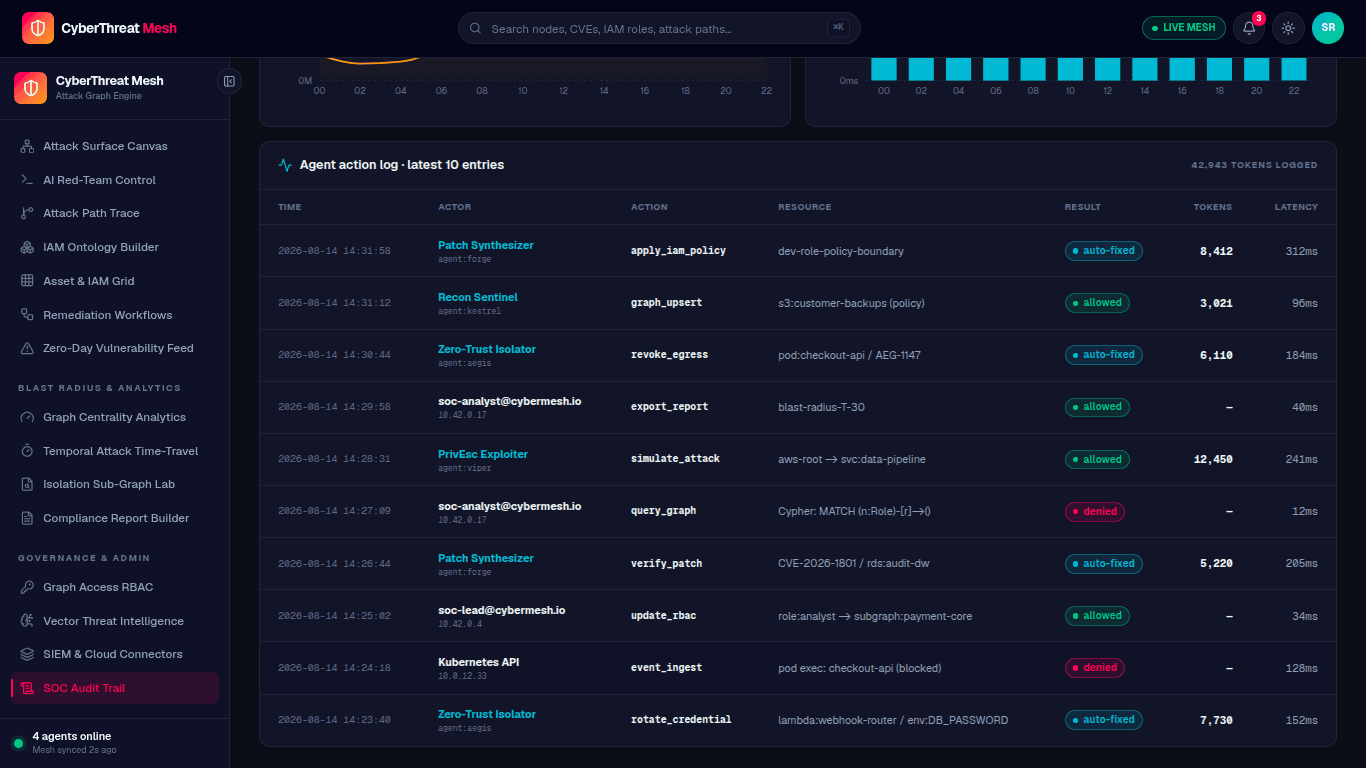

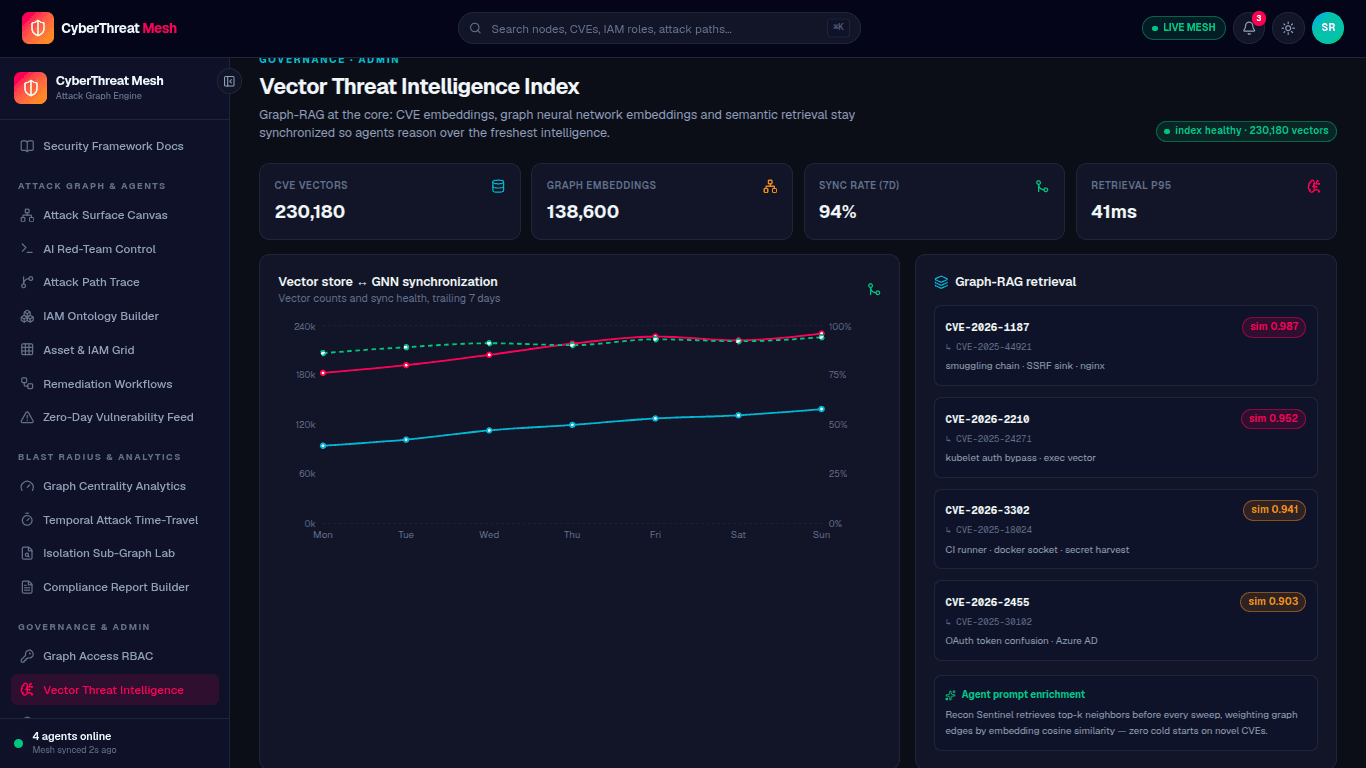

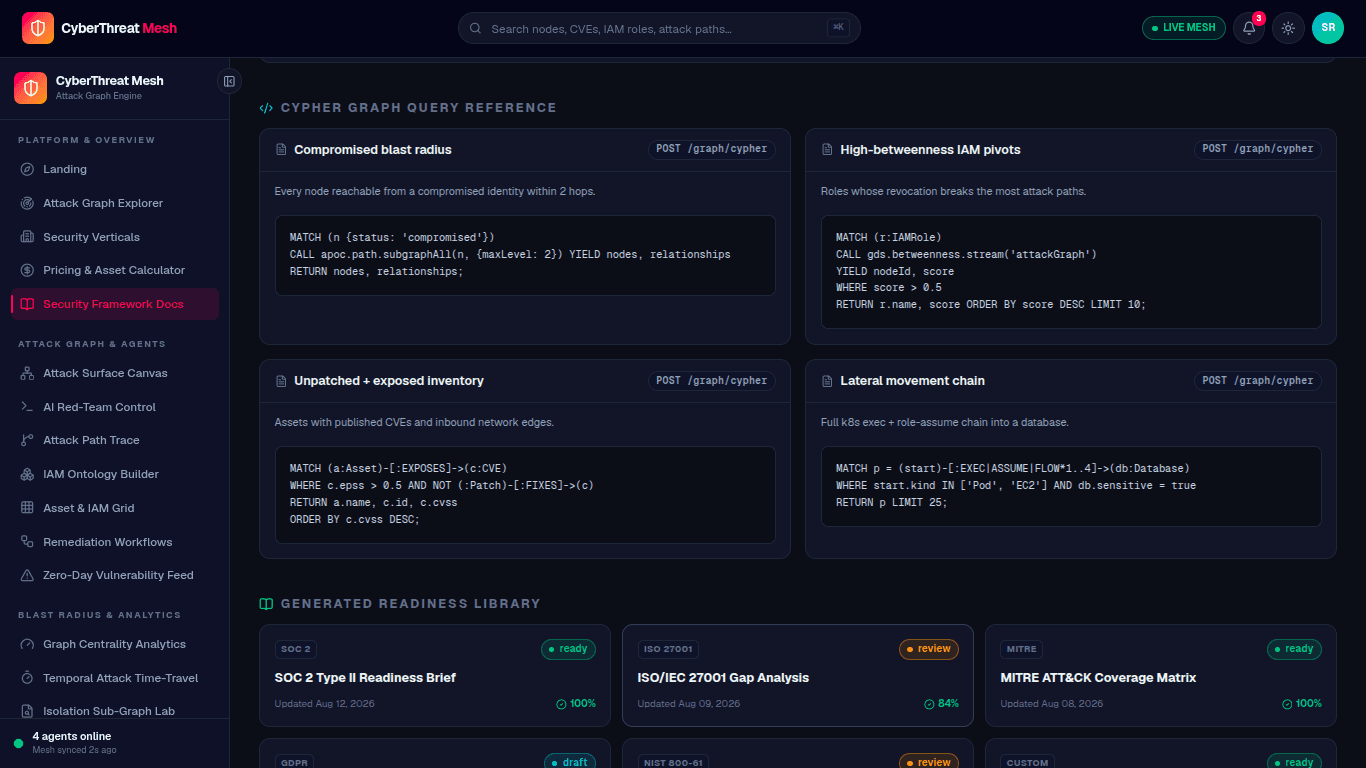

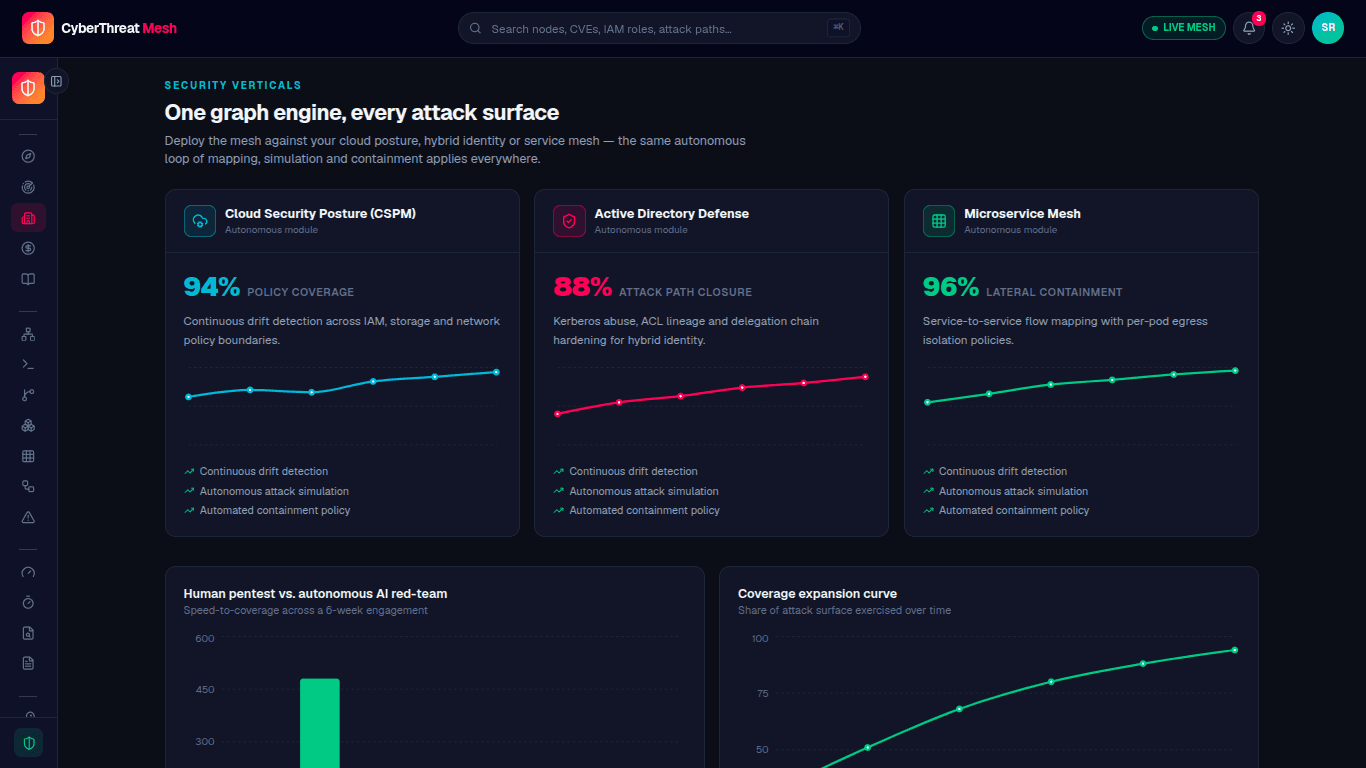

Screens from the delivered system.
